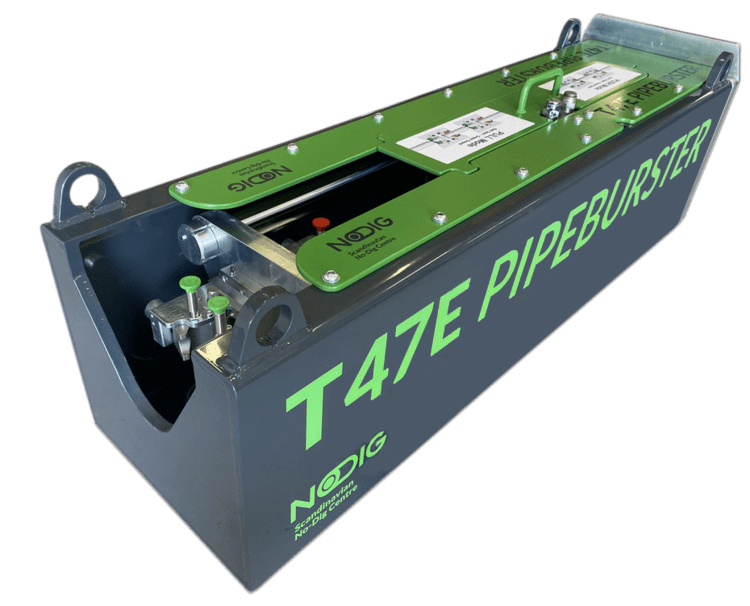

T47E Electro-Static Pipeburster
Designers note:
“Versatile midrange machine. The pulling force of this model makes it the strongest model in its class. Anything from asbestos to ductile is managed by the T47E”
47 metric tons of pulling power
Ø50 mm. → Ø250 mm. operational range
Pipe materials: Can operate in all known pipe materials
“Versatile midrange machine. The pulling force of this model makes it the strongest model in its class. Anything from asbestos to ductile is managed by the T47E”
47 metric tons of pulling power
Ø50 mm. → Ø250 mm. operational range
Pipe materials: Can operate in all known pipe materials
Cutting
head
Excentric one-blade cutting head, designed for steel, cast and ductile

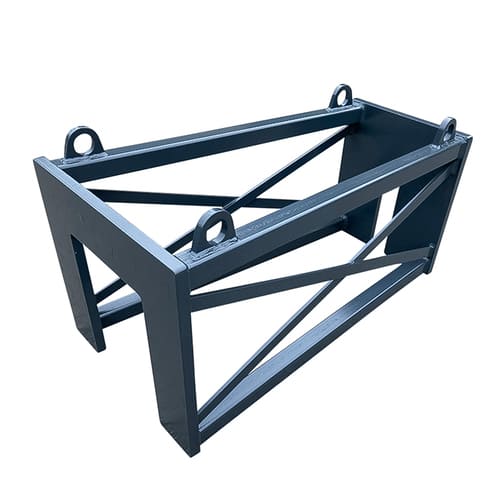

Extension frame
T47E heavy duty extension frame.
Solid steel rods
Model T47E high-grade composite material, designed for high safety margin.

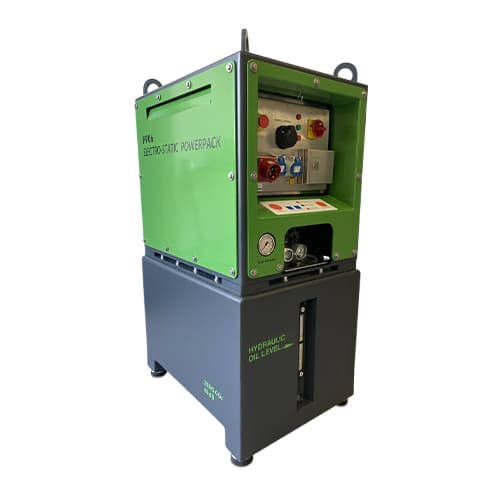

Hydraulic power pack
T47E power pack, 7.5 kW electric engine. 250 bar op. pressure.
| Pulling unit | Power pack | Steel rods | |
|---|---|---|---|
| Pulling force | 47 metric tons ( 103600 lbs. ) | ||
| Measurements | 160 x 45 x 50 cm. ( 63 x 17.7 x 19.7 inch. ) | 80 x 60 x 136 cm. ( 31.5 x 23.6 x 53.5 inch. ) | Ø45 mm. x 1.00 meter. ( 1.77 x 39.4 inch. ) |
| Weight | 600 kg. ( 1322 lbs. ) | 630 kg. ( 1388 lbs. ) | Ø45 mm. steel rod: 12 kg. ( 26 lbs. ) |
| Engine | Electric engine 7.5 kW. 400 volt 16 amp. 50 Hz. Connection: 3P + N + PE CEE | ||
| Hydraulic system | 3 cylinders | Max 250 bar. ( 3625 psi. ) 1 variable pump Variable pump flow: < 100 bar. / 60 ltr. / min. ( < 1450 psi. / 15.8 gal. / min. ) Hydraulic oil cap: 60 ltr. ( 15.8 gal. ) | |
| Operational speed | Up to 1.0 meter. / min. ( 3.3 ft. / min. ) | ||
| Operational range, Existing pipe diameter | Ø50 mm. → Ø250 mm. ( 2 → 10.0 inch. ) |
