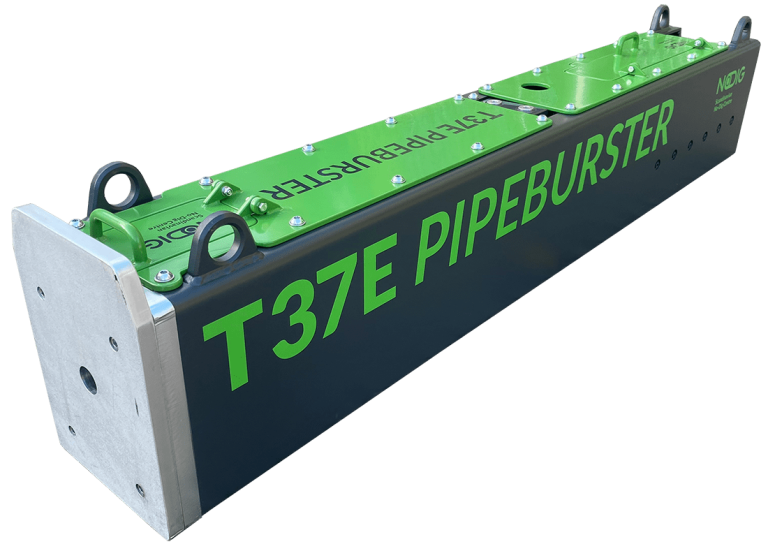

T37E Electro-Static Pipeburster
Designers note:
“This model is specifically designed for the water and gas industry. Where parallel utilities and lack of space can prevent the use of standard machines, the slim and narrow design (300 mm.), enables the contractor to undertake this type of work without hesitation. The T37E holds the highest productivity level, in the No-Dig catalogue.”
41 metric tons of pulling power
Ø50 mm. → Ø250 mm. operational range
Pipe materials: Can operate in all known pipe materials
“This model is specifically designed for the water and gas industry. Where parallel utilities and lack of space can prevent the use of standard machines, the slim and narrow design (300 mm.), enables the contractor to undertake this type of work without hesitation. The T37E holds the highest productivity level, in the No-Dig catalogue.”
41 metric tons of pulling power
Ø50 mm. → Ø250 mm. operational range
Pipe materials: Can operate in all known pipe materials
Extension frame
The extension frame is used to extract the bursting tool.
Bursting
head
3-blade bursting head for PVC/HDPE pipe replacement.
Solid steel rods
Model T37 high-grade composite material, designed for high safety margin.
Hydraulic power pack
T37 power pack, 25 bhp. diesel engine. 250 bar op. pressure.
| Pulling unit | Power pack | Steel rods | |
|---|---|---|---|
| Pulling force | 41 metric tons ( 90400 lbs. ) | ||
| Measurements | 207 x 30 x 44 cm. ( 81.5 x 11.8 x 17.3 inch. ) | 120 x 110 x 120 cm. ( 47.2 x 43.3 x 47.2 inch. ) | Ø40 mm. x 1.00 meter. ( 1.57 x 11.80 inch. ) |
| Weight | 480 kg. ( 1058 lbs. ) | 820 kg. ( 1807 lbs. ) | Ø40 mm. steel rod: 10.0 kg. (22 lbs. ) |
| Engine | Kubota 3-cyl. diesel 22 bhp. / 16.40 kW. Fuel cap. 35 ltr. ( 9.25 gal. ) Fuel consumption: 5 ltr. / hr. ( 1.3 gal. / hr. ) | ||
| Hydraulic system | 1 cylinder Hollow-design | Max 250 bar. ( 3625 psi. ) Pump. 1: 35.0 ltr. / min. ( 9.25 gal. / min. ) Pump. 2: 22.5 ltr. / min. ( 5.95 gal. / min. ) Variable pump flow: < 70 bar. → 57.5 ltr. / min. ( < 1015 psi. → 15.2 gal. / min. ) > 70 bar. → 22.5 ltr. / min. ( < 1015 psi. → 5.95 gal. / min. ) Hydraulic oil cap. 85 ltr. ( 22.45 gal. ) | |
| Operational speed | Up to 2.0 meter. / min. ( 6.5 ft. / min. ) | ||
| Operational range, Existing pipe diameter | Ø50 mm. → Ø250 mm. ( 2 → 10.0 inch. ) |
