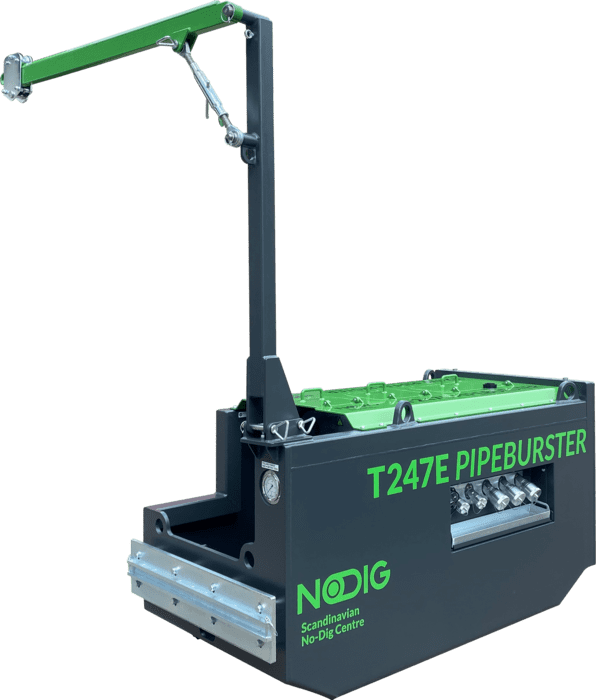

T247E Electro-Static Pipeburster
Designers note:
“Self-contained unit, which includes; on board electric crane for easy rod handling and on-board hydraulic rod spinner.
Depending on pipe size, the T247E can operate from within a standard 4-meter trench box”
247 metric tons of pulling power
Ø150 mm. → Ø800 mm. operational range
Pipe materials: Can operate in all known pipe materials
Ø150 mm. → Ø800 mm. operational range
Pipe materials: Can operate in all known pipe materials
T247E

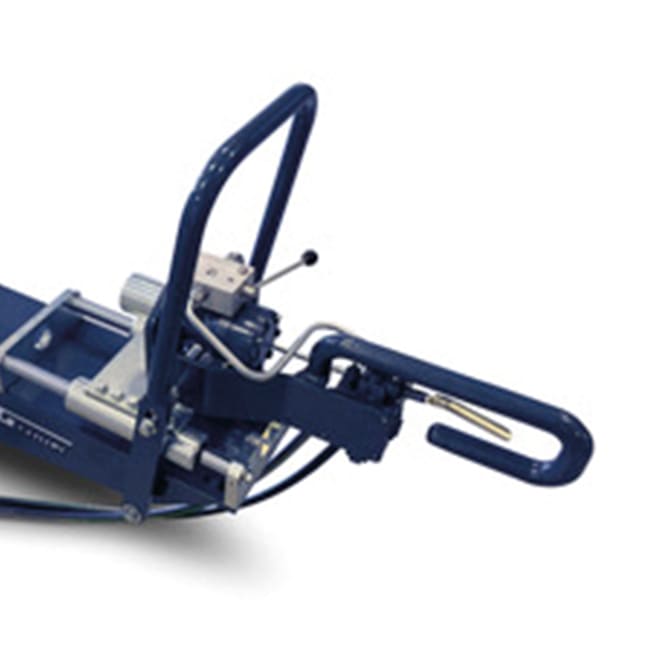

ARS
Hydraulic rod spinner.

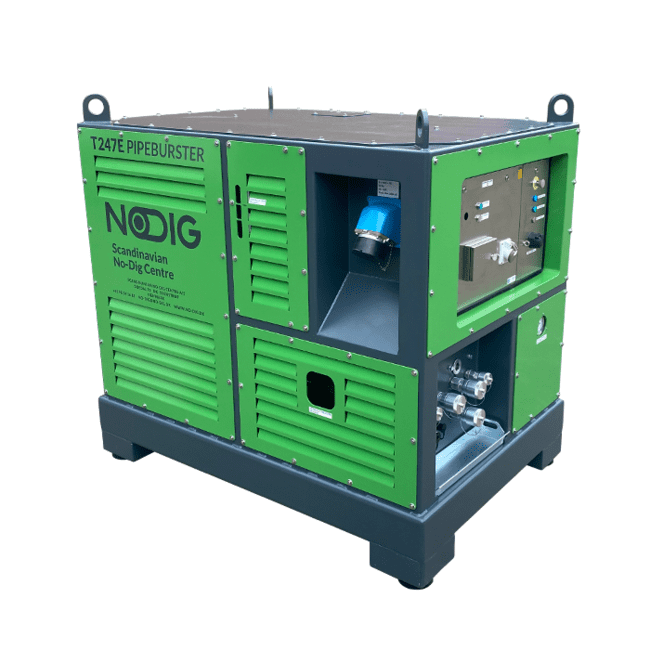

Electric Power Pack PP07
T247E electro-static power pack.

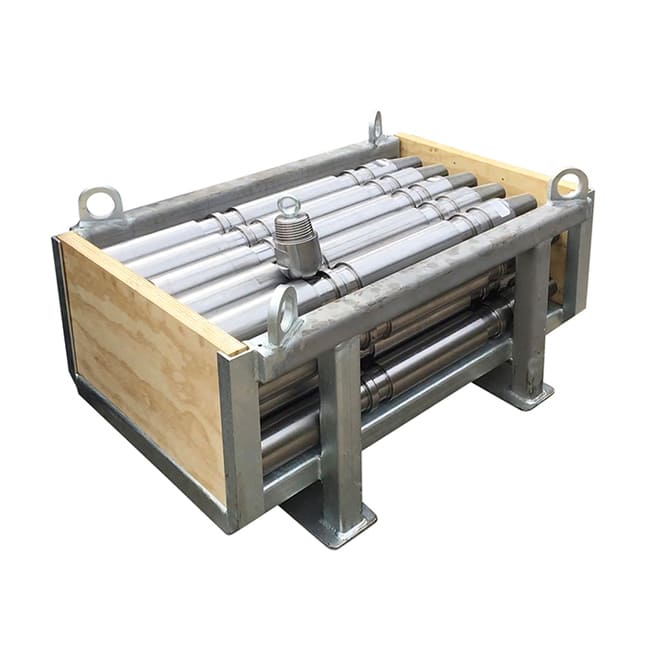

T247E steel rod system
Ø105 mm. x 1.00 meter long. Handled by on-board electrical crane.
| Pulling unit | Power pack | Steel rods | |
|---|---|---|---|
| Pulling force | 92 metric tons ( 202825 lbs. ) | ||
| Measurements | 180 x 65 x 72 cm. ( 71 x 25.6 x 28.3 inch. ) | 120 x 110 x 120 cm. ( 47.2 x 43.3 x 47.2 inch. ) | Ø60 mm. x 0.75 meter. ( 2.36 x 29.5 inch. ) |
| Weight | 1400 kg. ( 3086 lbs. ) | 820 kg. ( 1807 lbs. ) | Ø60 mm. steel rod: 15 kg. ( 33 lbs. ) |
| Engine | Electric engine 15 kW. 400 volt 32 amp. 50 Hz. Connection: 3P + N + PE CEE Aux. 230 volt / 1200 W | ||
| Hydraulic system | 3 cylinders | Max 250 bar. ( 3625 psi. ) Hydraulic oil cap. 115 ltr. ( 30.38 gal ) Variable pump flow: 84 ltr. / min. (3000 rpm.) ( 22.19 gal. / min. ) | |
| Operational speed | Up to 2.0 meter. / min. ( 6.5 ft. / min. ) | ||
| Operational range, Existing pipe diameter | Ø75 mm. → Ø400 mm. ( 3 → 16 inch. ) |
